Description

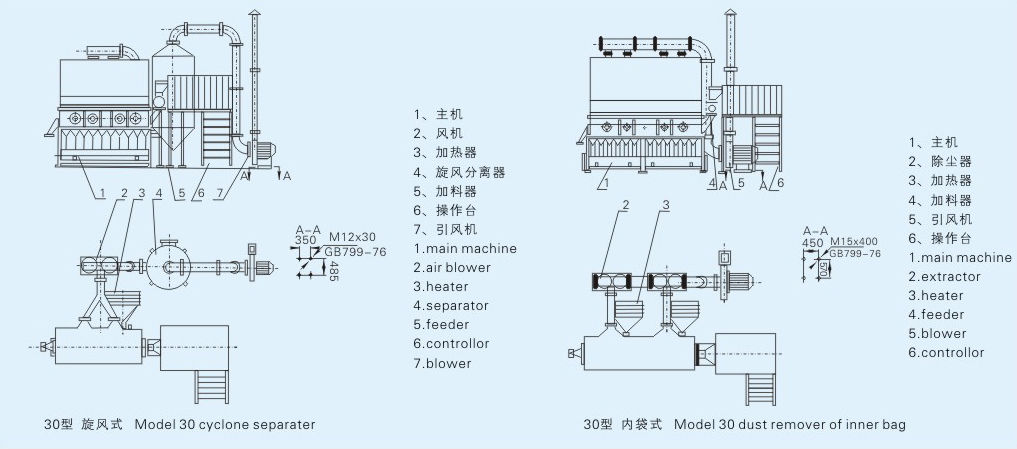

A fluidized bed dryer consists of air filter, heater, fluidized bed, rotating segment feeder, cyclone separator , bag dust remover, high press. centrifugal fan and stage for operation. According to different characters of different materials to be dried, the dryer can be equipped with both cyclone separator and bag dust remover or with either of them. Generally speaking, for those pellet materials with a large specific gravity, only a cyclone separator is needed. And for those granule or powder materials with a small specific gravity, a bag dust remover is needed and so is a pneumatic conveying device if possible. The dryer can also be equipped with a rotating segment feeder if required.

Application

This fluidized bed dryer is suitable for drying pellet or granule materials such as raw materials for medicine,pellets,traditional Chinese medicine drink granules in pharmaceuticalindustry;plastic resin,citric acid and other powder or granule materials in chemical industry and drink granules, corn plumule, feed in food industry. The most suitable diameter of the materials is 0.5-3mm.
