The terminal block module saves labor hours, space, and costs. It can use screw-free spring terminals, customize as needed, and is installed on a standard 35mm DIN rail, greatly improving wiring efficiency.

The terminal block module can be configured with various models according to usage requirements. These include: PLC I/O adapter terminal block module, proximity switch photoelectric sensor terminal block module, 24/42/48 multi-group multi-point equipotential parallel and branching terminal block module, power branching common terminal block, DC power tapping terminal block module, servo motor driver CN1 relay terminal block module, etc. All can be equipped with screw connectors or spring connectors.

The PLC I/O adapter terminal block module can be equipped with various connector types such as D-SUB, SISC, MIL, etc., to achieve 4, 8, 12, 16, 32-point sensor hub PLC IO adapter functionality.

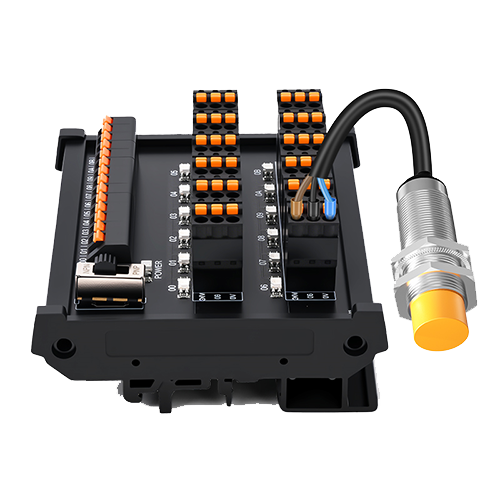

The proximity switch photoelectric sensor terminal block module is suitable for various two-wire or three-wire proximity sensors, photoelectric switches, magnetic switches, etc. To flexibly and conveniently adapt to sensors with NPN/PNP operating modes, a polarity switch is set up within the module. It is also suitable for button switches, micro switches, travel switches, etc.

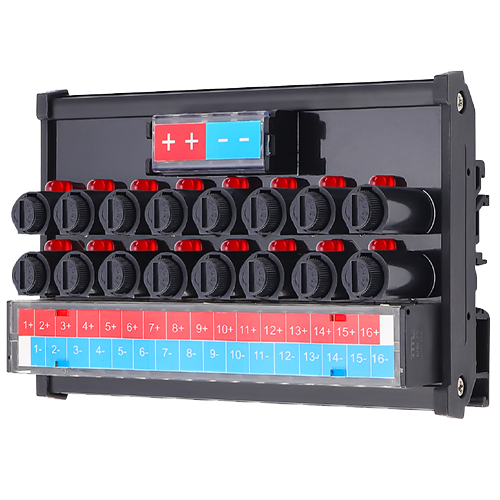

The DC power tap terminal block module is used for multi-channel tapping of positive and negative DC power. Each tapped-off circuit is equipped with a fuse and a fuse indication LED light.
