Product Detail

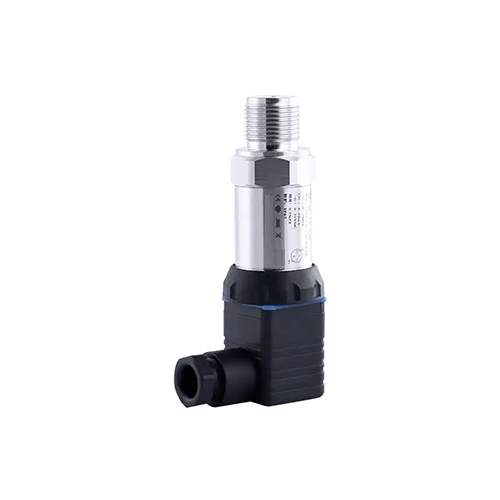

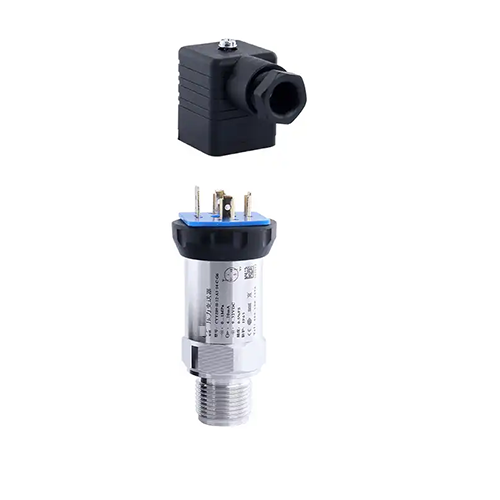

The CY-PT01 economical pressure transmitter adopts a diffusion silicon core, which is suitable for general industrial sites with low precision requirements and has high cost-effectiveness.
Technical parameter
model CY-PT01-XX Range of measurement -0.1～0～60MPa output signal 4～20mA、RS485 power supply 9～32VDC、5～28VDC accuracy 0.5%FS Measurement medium Gas liquid protection grade IP65
Typical applications
General industrial measurement: water pressure, oil pressure, air pressure, constant pressure water supply, air compressor, hydraulic press, boiler, air tightness testing.
