The CY-PT03 pressure transmitter is carefully designed, with a compact structure and excellent quality, making it very suitable for general industrial use and offering high cost-effectiveness. It also has the advantages of diversified output signals, range, pressure interfaces, electrical connections, etc., making it convenient to match different working conditions on site.
Technical parameter
model | CY-PT03-XX |
Range of measurement | -100kPa～0～100MPa |
pressure type | gauge pressure、Absolute pressure、Sealing pressure |
output signal | 4～20mA、RS485、0～10VDC、0～5VDC、1～5VDC、0.5～2.5VDC |
Power supply | 9～36VDC、15～36VDC、3～5VDC |
Threaded interface | M20*1.5、M16*1.5、G1/2、G1/4、NPT1/2、NPT1/4(customizable) |
accuracy | 0.1%FS、0.25%FS、0.5%FS |
Measurement medium | Gas liquid |
working temperature | -20℃~85℃ |
protection grade | IP65 |

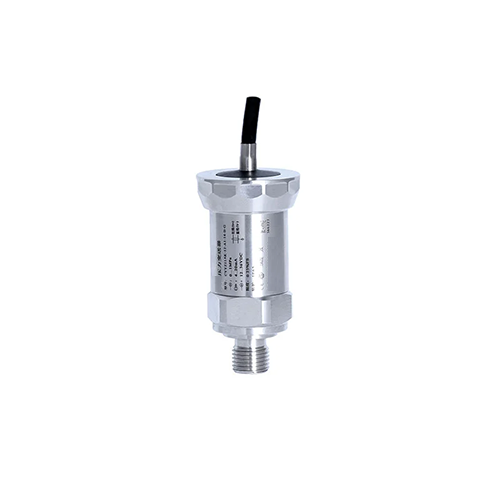

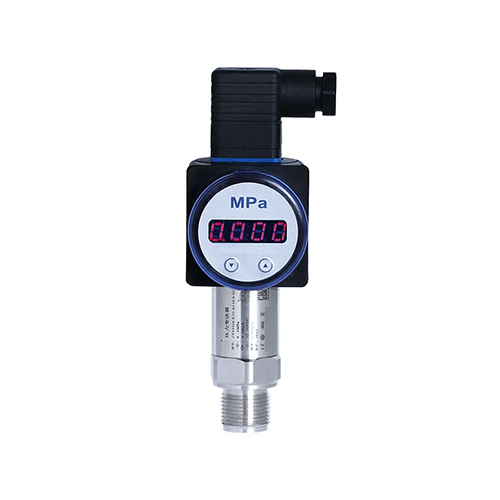

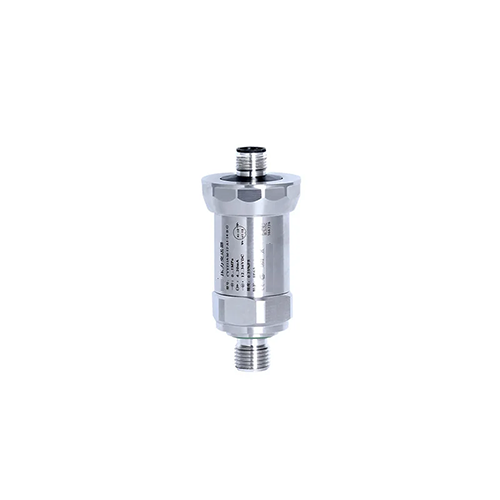

Attachment information | J1:Hessman connector、J2:Direct lead wire、J3:Aviation plug |
General industrial measurement: water pressure, oil pressure, air pressure, constant pressure water supply, air compressor, hydraulic press, boiler, air tightness testing.
