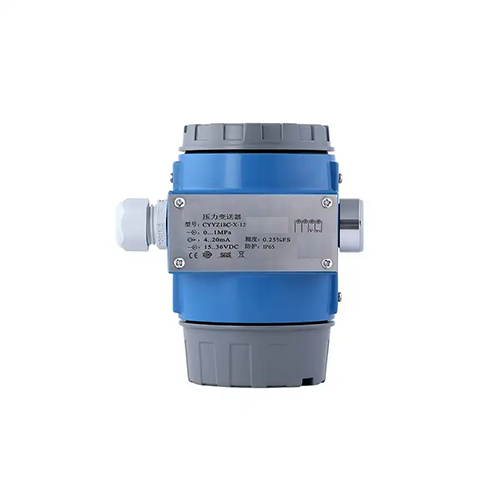

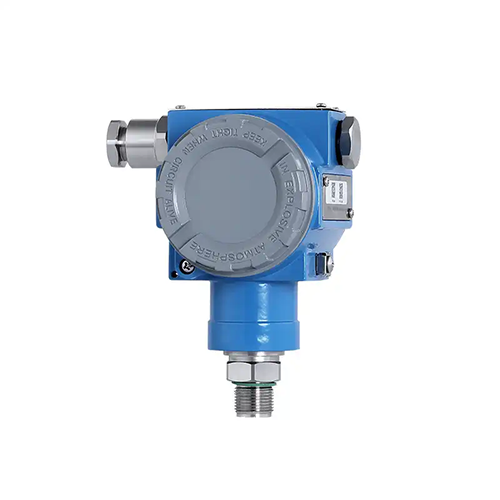

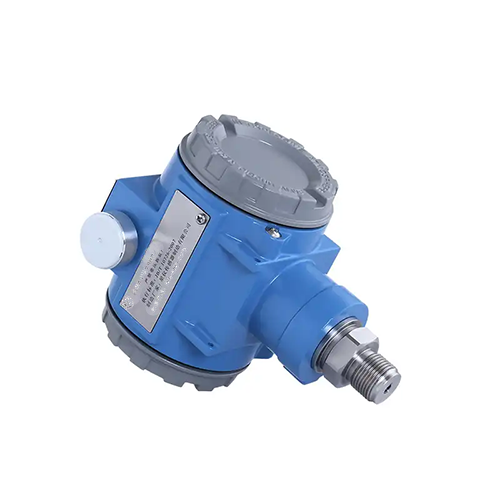

The CY-PT05 pressure transmitter is carefully designed and of excellent quality, making it very suitable for general industrial use. It has multiple explosion-proof function options, including intrinsic safety explosion-proof, isolation explosion-proof, intrinsic safety dust explosion-proof, and can also choose HART protocol communication, with high cost-effectiveness. It also has the advantages of diversified output signals, range, and multiple pressure interfaces, making it convenient to match different working conditions on site. In addition, we can provide services that meet the application needs of customers in a short period of time based on their applications.
Technical parameter
model CY-PT05-XXX Range of measurement -100kPa～0～100MPa pressure type gauge pressure、Absolute pressure、Sealing pressure output signal 4～20mA、4～20mA HART、RS485、0～10VDC、0～5VDC、1～5VDC Power supply 9～32VDC、15～32VDC、13～32VDC、15～24VDC Threaded interface M20*1.5、M16*1.5、G1/2、G1/4、NPT1/2和NPT1/4(customizable) accuracy 0.1%FS、0.25%FS、0.5%FS Measurement medium Gas liquid working temperature -20℃~85℃ protection grade IP65
Typical applications
General industrial measurement: water pressure, oil pressure, air pressure, constant pressure water supply, air compressor, hydraulic press, boiler, air tightness testing.
