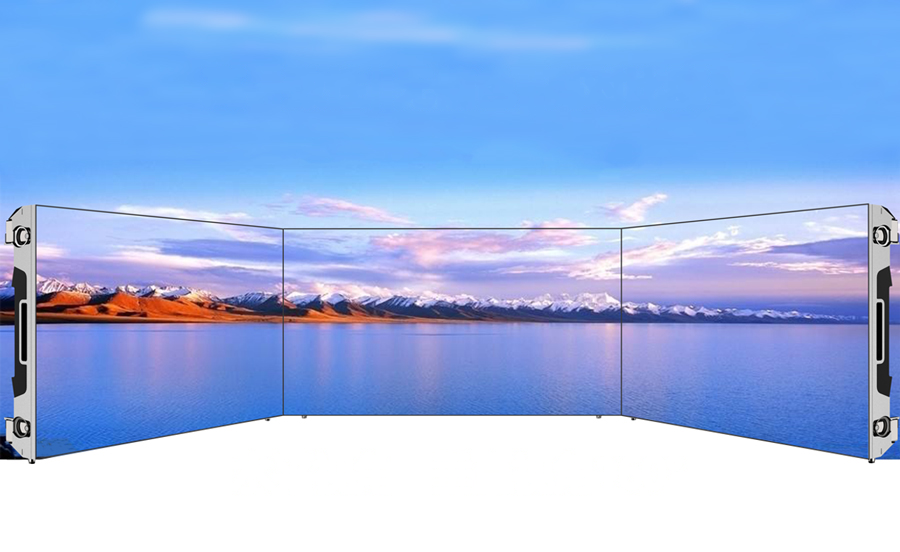

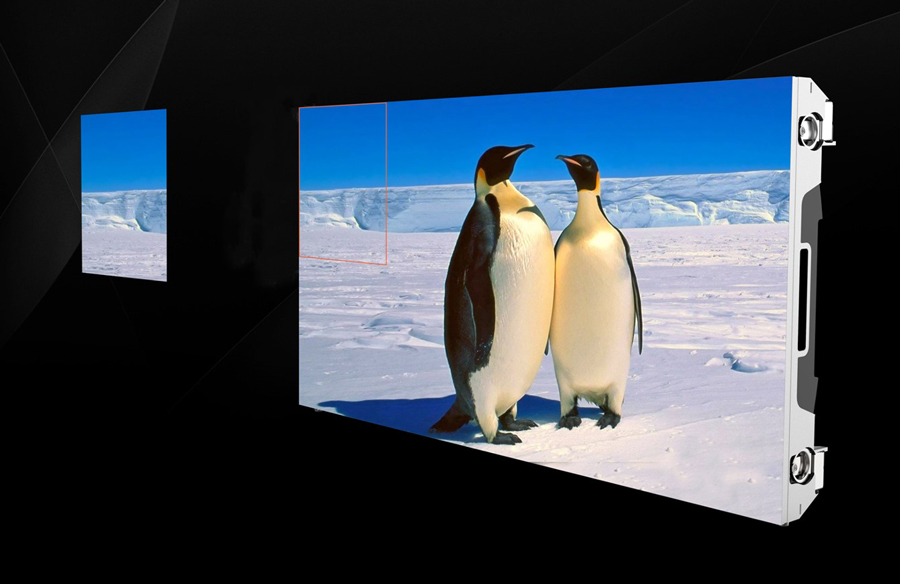

The small pitch LED display screen has a perfect and delicate display effect, as well as a "zero" border design, which perfectly replaces LCD splicing screens and DLP rear projection splicing units, and can meet the needs of high-end indoor application fields such as dispatch command centers, command and control centers, studios, and meteorological information centers that require high image quality.
Specification
Small pitch LED display screen(Flexible module) Moudle Parameters Product model CYLED-P1.5 CYLED-P1.8 CYLED-P2 CYLED-P2.5 Pixel pitch 1.538/1.579 mm 1.86/1.875mm 2 mm 2.5 mm Module Size 320×160/240×120 mm 320×160/240×120 mm 320×160/240×120mm 320×160/240×120mm Module Resolution 208×104/150×88 Pixels 172×86/128×64 Pixels 160×80/120×60 Pixels 128×64/96×48 Pixels pixel structure 1R1G1B 1R1G1B 1R1G1B 1R1G1B Screen parameters Pixel Density 422753/401084Pixels/m² 289050/284444 Pixels/m² 250000 Pixels/m² 160000Pixels/m² White balanced brightness ≥600cd/m² ≥600cd/m² ≥600cd/m ≥600cd/m² Gray scale 12-14bit 12-14bit 12-14bit 12-14bit contrast ratio ≥5000:1 ≥5000:1 ≥5000:1 ≥5000:1 refresh frequency ≥1920~3840Hz ≥1920~3840Hz ≥1920~3840Hz ≥1920~3840Hz Color temperature 2000K~12500K adjustable 2000K~12500K adjustable 2000K~12500K adjustable 2000K~12500K adjustable Horizontal perspective ≥160° ≥160° ≥160° ≥160° Vertical viewing angle ≥140° ≥140° ≥140° ≥140° protection grade IP20 IP20 IP20 IP20 Brightness uniformity ≥97% ≥97% ≥97% ≥97% Brightness adjustment range 0~100Stepless regulation 0~100Stepless regulation 0~100Stepless regulation 0~100Stepless regulation Number of signal processing bits 16bit*3 16bit*3 16bit*3 16bit*3 Continuous working hours ≥72h ≥72h ≥72h ≥72h Typical lifespan values 50000h 50000h 50000h 50000h working voltage DC 4.2~5V Power supply requirements 220×(1±10%)VAC、50×(1±5%)Hz Maximum power consumption 650W/m² 650W/m² 650W/m² 650W/m² Average Power 270W/m² 270W/m 270W/m² 270W/m² Recommended visual range ≥2m ≥2m ≥2m ≥3m Controlling Distance Category 5e Ethernet cable：<100m;Single-mode fiber：<10km
Features

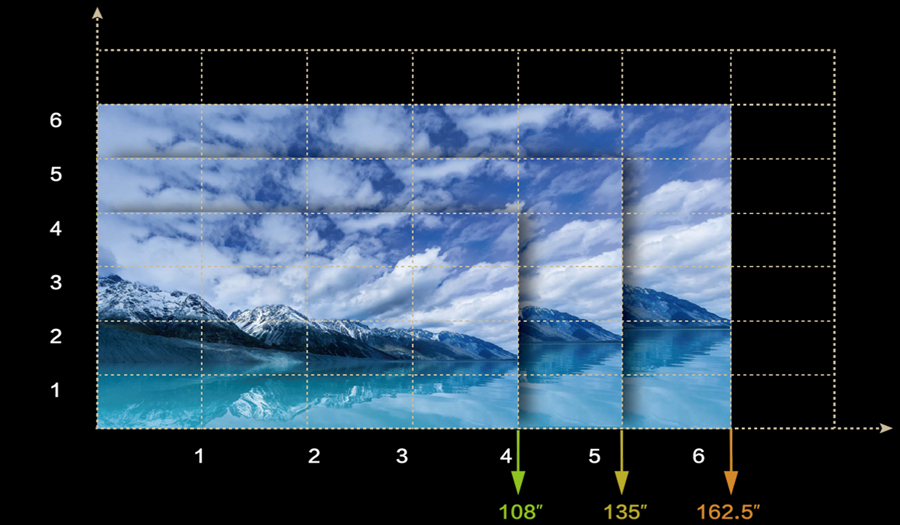

1.The 16:9 ratio design allows for easy stitching to achieve FHD/2K/4K resolution. Input resolution and display resolution point-to-point, so that the display screen can perfectly match and present 16:9 film sources. There is no distortion, distortion, or blurring when playing the video.
2.Pre maintenance design of magnetic module
Combined with the balanced magnetic pre maintenance tool, it can effectively prevent damage to the lamp beads and reduce maintenance costs when disassembling the module.

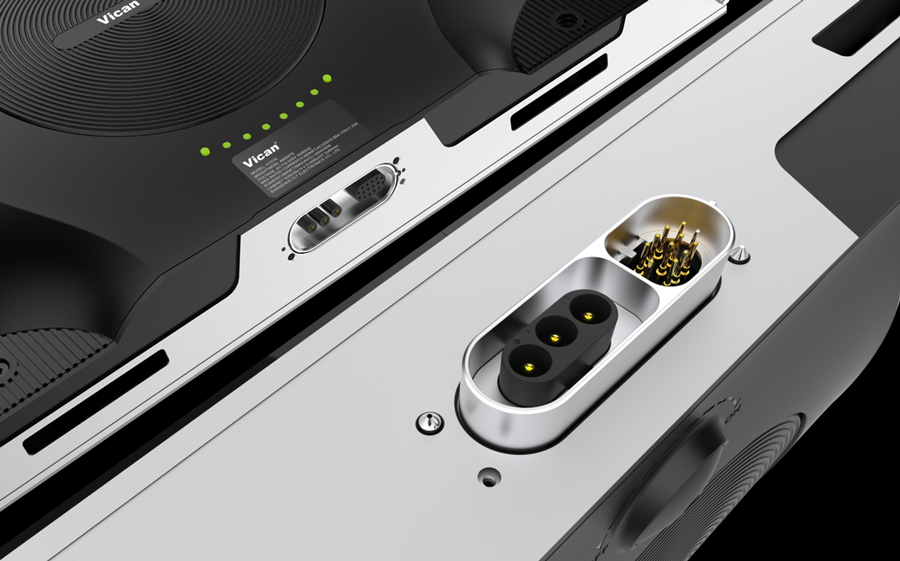

3.Wireless hard connection
Internal wireless hard connection design, no external wiring required, greatly saving installation time.

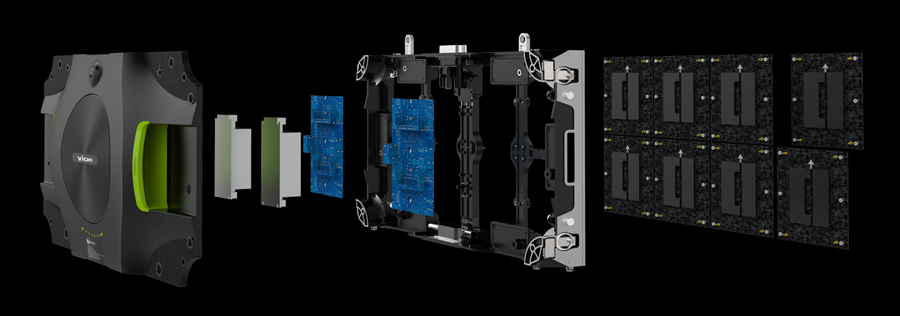

Adopting modular design, the overall structure is simple and clear, saving maintenance costs in the later stage.
After module replacement, there is no need for calibration. The intelligent module intelligently calibrates data storage, voltage detection, temperature detection, etc., and can be used in any position.

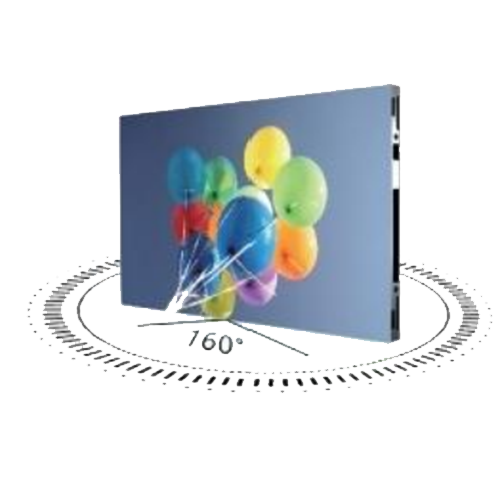

Unique ultra wide viewing angle technology, with a horizontal and vertical viewing angle of 160 °, supporting point-to-point FHD/2K/4K, providing a wide field of view and more beautiful and realistic images.
